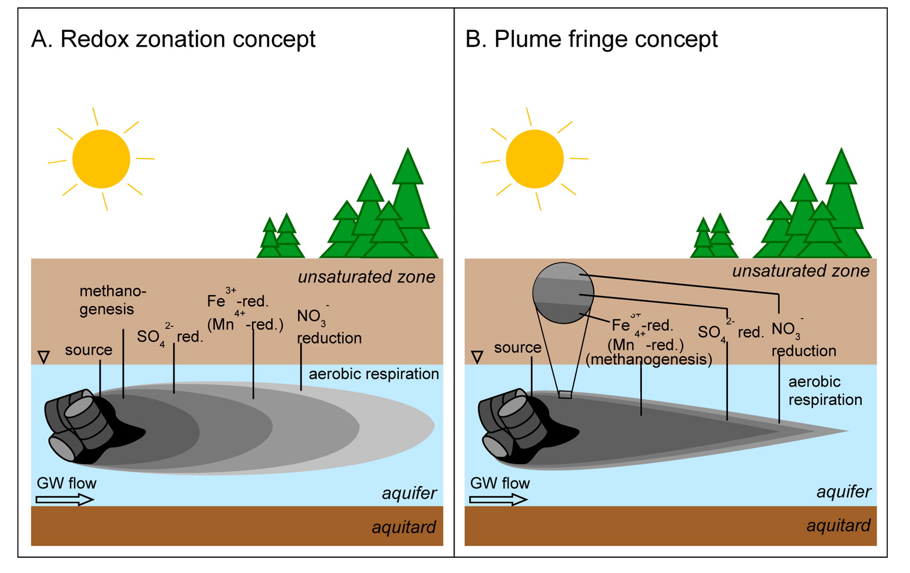

Figure 2. Comparison of the longitudinal redox zonation concept (A) and the plume fringe concept (B). Both concepts describe the spatial distribution of electron acceptors and respiration processes in a hydrocarbon contaminant plume. (B) Iron(III) reduction, manganese(IV) reduction, and methanogenesis may occur simultaneously in the core of the contaminant plume (from Rainer, et al., 2015; reproduced with permission from EST)
