File:Beckley1w2 Fig4.png
Size of this preview: 697 × 600 pixels. Other resolutions: 279 × 240 pixels | 753 × 648 pixels.
Original file (753 × 648 pixels, file size: 101 KB, MIME type: image/png)
Summary

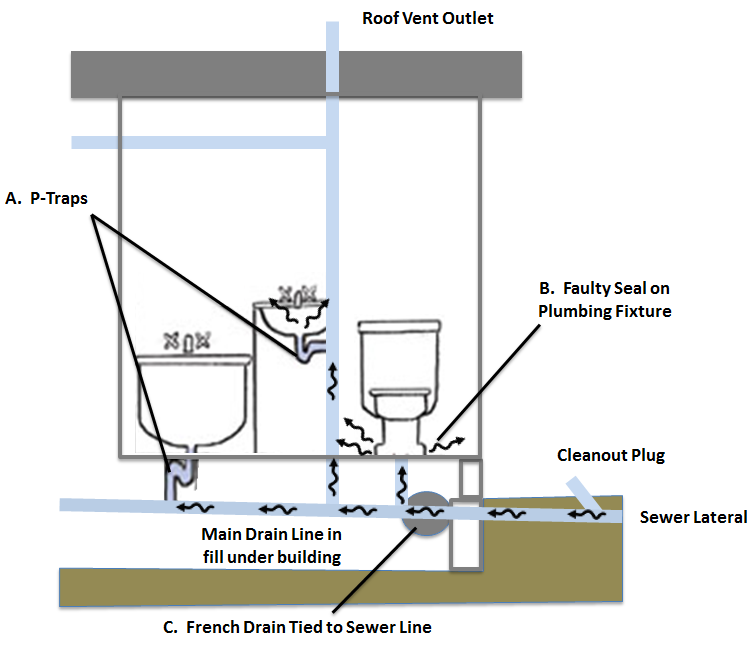

Figure 4. Potential Entry Points into Buildings. VOCs can move from sewers and utility tunnels into buildings through a variety of features, for example: A. Dry p-traps; B. Faulty seal on plumbing fixture (e.g., Pennell et al. 2013); and C. French drain tied to sewer line (Guo et al. 2015). Utility tunnels can vent directly into buildings.
